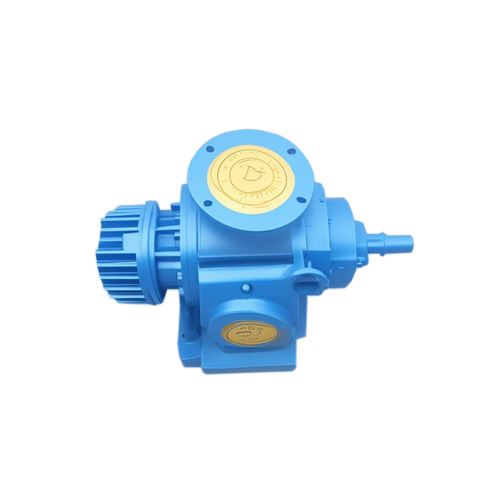

一、不銹鋼雙螺桿泵概述
雙螺桿泵的種類較多，它們是由不同的螺桿螺旋形面（即螺旋齒形曲線也稱型線）構成不同類型的雙螺桿泵。雙螺桿泵有密封型和非密封型兩大類。 雙螺桿泵作為一種容積式泵，泵內吸入室應與排出室嚴密地隔開。因此，泵體與螺桿外圓表面及螺桿與螺桿間隙應盡可能小些。同時螺桿與泵體、螺桿與螺桿間又相互形成密封腔，保證密閉，否則就可能有液體從間隙中倒流回去。
雙螺桿泵可分為內置軸承和外置軸承兩種形式。在內置軸承的結構型式中軸承由輸送物進行潤滑。外置軸承結構的雙螺桿泵工作腔同軸承是分開的。由于這種泵的結構和螺桿間存在的側間隙，它可以輸送非潤滑性介質。此外，調整同步齒輪使得螺桿不接觸，同時將輸出扭矩的一半傳給從動螺桿。正如所有螺桿泵一樣，外置軸承式雙螺桿泵也有自吸能力，而且多數泵輸送元件本身都是雙吸對稱布置，可消除軸向力，也有很大的吸高。
泵的這些特性使它在油田化工和船舶工業中得到了廣泛的應用。外置軸承式雙螺桿泵可根據各種使用情況分別采用普通鑄鐵、不銹鋼等 不同材料制造。輸送溫度可達 250 o C 。泵具有不同方式的加熱結構，理論流量可達 2000 立方米 / 小時。
二、不銹鋼雙螺桿泵的特點：
無攪拌、無脈動、平穩的輸送各種介質，由于泵體結構保證泵的工作元件內始終存有泵送液體作為密封液體，所有的泵有很強的自吸能力，且能汽液混輸。
泵的特殊設計保證了泵有高的吸入性能即很小的 NPSHr 值。采用獨立潤滑的外置軸承，允許輸送各種非潤滑性介質。 臥式、立式、帶加熱套等各種結構型式齊全，可以輸送各種清潔的不含固體顆粒的低粘度或高粘度介質，選用正確的材質，甚至可以輸送許多腐蝕性介質。
三、. 不銹鋼雙螺桿泵的用途
由雙螺桿泵的原理知道，對于外置軸承的雙螺桿泵，通過軸承定位，兩根螺桿在襯套中互不接觸，齒側之間保持恒定的間隙（其間隙值由工況及泵本身規格決定），螺桿外圓與襯套內圓面也保持恒定的間隙不變。兩根螺桿的傳動由同步齒輪完成。齒輪箱中有獨立的潤滑，與泵工作腔隔開。這種結構的優點大大拓寬了雙螺桿泵的使用范圍，即：除了輸送潤滑性良好的介質外，還可輸送大量的非潤滑性介質，各種粘度（高粘度可達 3*106mm/s ）的介質以及具有腐蝕性（酸、堿等性質），磨蝕性的液體。
雙螺桿泵由于其恒定間隙的存在以及型線上的特點，其屬于非密封型容積泵，因此除了輸送純液體外，還可輸送氣體和液體的混合物，即汽液混輸，這也是雙螺桿泵非常獨特的優點之一。 雙螺桿泵由于結構的獨特設計，可以自吸而無須專門的自吸裝置，而且由于軸向輸送軸流速度較小而具備很強的吸上能力即很小的 NPSHr 值。
雙螺桿泵還可干轉。由于運動部件在工作時互不接觸，因此短時的干轉不會破壞泵元件，這種特點給自動控制的流程提供了極大的方便，但干運轉時間受多種因素限制，一般很短。
另外雙螺桿泵在輸送過程中無剪切，無乳化作用，因此不會破壞分子鏈結構和工況流程中所形成的特定的流體性質，并且由于傳動依靠同步齒輪，泵運轉噪音低，振動小，工作平穩。
四、雙螺桿泵應用范圍
造船：用作船用裝載泵、掃倉泵、船用壓載泵、主機滑油泵、燃油輸送泵、燃油噴射泵、貨油泵等。
熱電廠：重油及原油輸送泵、重油燃油泵等。
化工：用作各種酸堿鹽液以及樹脂、顏料、油墨、油漆、甘油、石蠟的輸送泵。
煉油廠：用以輸送各種加熱油、瀝青油、焦油、乳膠液、瀝青及用作油輪油、池油、罐車等各種油品的裝載及卸載。
食品：用于酒廠、食品廠、糖廠、罐頭廠、等輸送酒精、蜂蜜、糖汁、牙膏、牛奶、奶油、醬油植物油、動物油、葡萄酒等。
油田：輸送各種油品、原油等。
五、不銹鋼雙螺桿泵工作示意圖
六不銹鋼雙螺桿泵主要零部件材料選用表
| 材料類別 零件名稱 | Ⅰ | Ⅱ | Ⅲ |
| 泵體 | 20 | 0Crl3 | 0Crl8Ni9 |
| 主、從動軸 | 45 | 3Crl3 | lCrl8Ni9 |
| 螺套 | 38CrMoAl | 3Crl3 | lCrl8Ni9 |
| 襯套 | QT600-3 | ZGlCrl3 | ZG0Crl8Ni9 |
七、不銹鋼雙螺桿泵型號意義
| BY2GW.W | H | 6.1 | 64 | B | Ⅱ |
| 系列代碼 | 多相混輸型 | 規格代碼 | 螺旋導程 | 密封代碼 | 材料代碼 |
1、系列代碼說明 BY2GW.W：BY2GW-博禹牌臥式雙螺桿泵，W-外置軸承式 BY2GW.N：臥式，內置軸承式 |
八、不銹鋼雙螺桿泵性能參數表
型號 規格 | 壓力 MPa | 1450r/nin | 950r/min | 720r/min | |||||||||||||
30cSt | 75cSt | 150cSt | 300cSt | 450cSt | 750cSt | 1500cSt | 2500cSt | ||||||||||
| m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | ||
| BY2GW.W2.5-15 | 0.6 | 2.4 | 1.5 | 3 | 2.2 | 3.2 | 2.2 | 3.3 | 2.2 | 1.8 | 1.5 | 1.8 | 2.2 | 1.3 | 2.2 | 1.3 | 2.2 |
| 1.0 | 1.7 | 2.2 | 2.6 | 2.2 | 2.9 | 3 | 3.1 | 3 | 1.7 | 2.2 | 1.7 | 2.2 | 1.2 | 2.2 | 1.2 | 2.2 | |
| BY2GW.W2.5-20 | 0.4 | 3.9 | 1.5 | 4.3 | 1.5 | 4.4 | 2.2 | 4.5 | 2.2 | 2.6 | 1.5 | 2.6 | 2.2 | 1.9 | 2.2 | 1.9 | 2.2 |
| 0.6 | 3.4 | 1.5 | 4 | 2.2 | 4.2 | 2.2 | 4.3 | 2.2 | 2.5 | 2.2 | 2.5 | 2.2 | 1.8 | 1.5 | 1.8 | 2.2 | |
| BY2GW.W2.8-18 | 0.6 | 4.3 | 2.2 | 4.8 | 2.2 | 4.9 | 3 | 5 | 3 | 2.9 | 2.2 | 2.9 | 3 | 2.1 | 3 | 2.1 | 3 |
| 1.0 | 3.7 | 3 | 4.4 | 4 | 4.7 | 4 | 4.8 | 4 | 2.7 | 3 | 2.7 | 3 | 2 | 3 | 2 | 4 | |
| BBY2GW.W2.8-24 | 0.4 | 6.3 | 2.2 | 6.6 | 2.2 | 6.7 | 3 | 6.8 | 3 | 4 | 2.2 | 4 | 3 | 2.9 | 2.2 | 2.9 | 3 |
| 0.6 | 5.9 | 2.2 | 6.4 | 4 | 6.5 | 4 | 6.6 | 4 | 3.8 | 3 | 3.8 | 3 | 2.7 | 3 | 2.7 | 3 | |
BY2GW.W 3.1-22 | 0.6 | 7.7 | 3 | 8.2 | 4 | 8.3 | 4 | 8.4 | 4 | 5 | 3 | 5 | 4 | 3.7 | 3 | 3.7 | 4 |
| 1.0 | 7 | 4 | 7.8 | 5.5 | 8 | 5.5 | 8.1 | 5.5 | 4.8 | 4 | 4.8 | 5.5 | 3.5 | 4 | 3.5 | 5.5 | |
BY2GW.W3.1-30 | 0.4 | 11.1 | 3 | 11.4 | 3 | 11.5 | 4 | 11.6 | 5.5 | 6.9 | 3 | 6.9 | 4 | 5.1 | 3 | 5.1 | 4 |
| 0.6 | 10.6 | 4 | 11.1 | 5.5 | 11.3 | 5.5 | 11.4 | 5.5 | 6.7 | 4 | 6.7 | 5.5 | 4.9 | 4 | 4.9 | 5.5 | |
BY2GW.W3.2-18 | 1.6 | - | - | 4.8 | 7.5 | 5.8 | 7.5 | 6.3 | 7.5 | 2.4 | 5.5 | 2.4 | 5.5 | 0.9 | 4.0 | 0.9 | 5.5 |
| 2.0 | - | - | 4.2 | 7.5 | 5.5 | 7.5 | 6.1 | 11 | 2.3 | 7.5 | 2.3 | 7.5 | 0.9 | 4.0 | 0.9 | 5.5 | |
| 2.5 | - | - | 3.4 | 11 | 5.0 | 11 | 5.8 | 11 | 2.1 | 7.5 | 2.1 | 7.5 | 0.8 | 5.5 | 0.8 | 5.5 | |
BY2GW.W3.2-24 | 1.0 | 5.5 | 5.5 | 7.6 | 7.5 | 8.4 | 11 | 8.7 | 11 | 4.6 | 5.5 | 4.6 | 5.5 | 2.7 | 5.5 | 2.7 | 5.5 |
| 1.25 | 4.6 | 7.5 | 7.2 | 11 | 8.2 | 11 | 8.5 | 11 | 4.5 | 5.5 | 4.5 | 7.5 | 2.6 | 5.5 | 2.6 | 7.5 | |
| 1.6 | 3.4 | 7.5 | 6.7 | 11 | 7.8 | 11 | 8.3 | 11 | 4.3 | 7.5 | 4.3 | 7.5 | 2.5 | 5.5 | 2.5 | 7.5 | |
BY2GW.W3.2-30 | 0.6 | 9.7 | 5.5 | 11 | 5.5 | 11.5 | 5.5 | 11.7 | 7.5 | 6.8 | 5.5 | 6.8 | 5.5 | 4.3 | 5.5 | 4.3 | 5.5 |
| 1.0 | 8.0 | 7.5 | 10.2 | 7.5 | 10.9 | 7.5 | 11.2 | 7.5 | 6.5 | 5.5 | 6.5 | 5.5 | 4.3 | 5.5 | 4.3 | 5.5 | |
BY2GW.W3.2-44 | 0.4 | 16.4 | 5.5 | 17.5 | 7.5 | 17.9 | 7.5 | 18.1 | 7.5 | 11.2 | 4.0 | 11.3 | 5.5 | 8.0 | 4.0 | 8.0 | 4.0 |
| 0.6 | 15.2 | 7.5 | 17 | 7.5 | 17.4 | 7.5 | 17.6 | 7.5 | 10.9 | 5.5 | 11 | 5.5 | 7.8 | 5.5 | 7.8 | 5.5 | |
BY2GW.W3.4-24 | 1.6 | - | - | 7.4 | 11 | 9 | 11 | 9.8 | 11 | 5.7 | 7.5 | 5.7 | 7.5 | 4.3 | 7.5 | 4.3 | 11 |
| 2.0 | - | - | 6.5 | 11 | 8.5 | 11 | 9.5 | 15 | 5.5 | 11 | 5.5 | 11 | 4.1 | 7.5 | 4.1 | 11 | |
| 2.5 | - | - | 5.3 | 15 | 7.8 | 15 | 9.1 | 15 | 5.1 | 11 | 5.1 | 11 | 3.9 | 11 | 3.9 | 11 | |
BY2GW.W3.4-30 | 1.0 | 8.3 | 7.5 | 11.4 | 7.5 | 12.4 | 11 | 12.9 | 11 | 7.6 | 7.5 | 7.6 | 7.5 | 5.6 | 7.5 | 5.6 | 7.5 |
| 1.25 | 6.9 | 11 | 10.7 | 11 | 12.1 | 11 | 12.6 | 11 | 7.4 | 7.5 | 7.4 | 11 | 5.5 | 7.5 | 5.5 | 11 | |
| 1.6 | 5 | 11 | 9.9 | 11 | 11.5 | 11 | 12.3 | 15 | 7.1 | 11 | 7.1 | 11 | 5.3 | 7.5 | 5.3 | 11 | |
BY2GW.W3.4-40 | 0.6 | 14.8 | 5.5 | 16.8 | 7.5 | 17.5 | 7.5 | 17.8 | 11 | 10.6 | 7.5 | 10.6 | 7.5 | 7.8 | 7.5 | 7.8 | 7.5 |
| 1.0 | 12.2 | 11 | 15.5 | 11 | 16.6 | 11 | 17.2 | 11 | 10 | 7.5 | 10 | 7.5 | 7.4 | 7.5 | 7.4 | 7.5 | |
BY2GW.W3.4-56 | 0.4 | 21.8 | 5.5 | 23.2 | 7.5 | 23.7 | 7.5 | 24 | 11 | 14.3 | 5.5 | 14.4 | 7.5 | 10.5 | 5.5 | 10.5 | 7.5 |
| 0.6 | 20.2 | 7.5 | 22.5 | 11 | 23.1 | 11 | 23.4 | 11 | 13.8 | 7.5 | 13.9 | 7.5 | 10.1 | 7.5 | 10.1 | 7.5 | |
BY2GW.W4.0-26 | 1.6 | 12.4 | 15 | 14.6 | 15 | 15.7 | 18.5 | 9.3 | 11 | 9.3 | 15 | 7 | 11 | 7 | 15 | ||
| 2.0 | 11.2 | 15 | 13.9 | 18.5 | 15.3 | 22 | 9 | 15 | 9 | 15 | 6.8 | 15 | 6.8 | 15 | |||
| 2.5 | 9.6 | 18.5 | 13.1 | 22 | 14.8 | 22 | 8.6 | 15 | 8.6 | 15 | 6.6 | 15 | 6.6 | 15 | |||
BY2GW.W4.0-32 | 1.0 | 13.9 | 11 | 18.2 | 15 | 19.6 | 15 | 20.3 | 15 | 12.2 | 11 | 12.2 | 15 | 9.1 | 11 | 9.1 | 11 |
| 1.25 | 12 | 15 | 17.3 | 15 | 19.1 | 15 | 20 | 18.5 | 11.9 | 11 | 11.9 | 15 | 8.9 | 11 | 8.9 | 15 | |
| 1.6 | 16.1 | 18.5 | 18.4 | 18.5 | 19.5 | 22 | 11.5 | 15 | 11.5 | 15 | 8.6 | 11 | 8.6 | 15 | |||
BY2GW.W4.0-44 | 0.6 | 24.6 | 11 | 27.4 | 11 | 28.3 | 11 | 28.8 | 15 | 17.3 | 11 | 17.3 | 11 | 12.8 | 11 | 12.8 | 11 |
| 1.0 | 21.1 | 15 | 25.7 | 15 | 27.2 | 15 | 27.9 | 18.5 | 16.6 | 11 | 16.6 | 15 | 12.3 | 11 | 12.3 | 15 | |
BY2GW.W4.0-64 | 0.4 | 37.2 | 11 | 39.1 | 11 | 39.8 | 11 | 40.1 | 15 | 24.1 | 11 | 24.2 | 11 | 17.8 | 11 | 17.8 | 11 |
| 0.6 | 35 | 11 | 38 | 15 | 38.9 | 15 | 39.4 | 18.5 | 23.5 | 11 | 23.7 | 11 | 17.3 | 11 | 17.3 | 11 | |
BY2GW.W4.5-30 | 1.6 | 17.4 | 18.5 | 22.3 | 22 | 24 | 22 | 24.8 | 30 | 14.9 | 18.5 | 15 | 18.5 | 11.1 | 18.5 | 11.2 | 18.5 |
| 2.0 | 15.1 | 22 | 21.3 | 30 | 23.4 | 30 | 24.4 | 30 | 14.5 | 22 | 14.6 | 22 | 10.9 | 18.5 | 11 | 22 | |
| 2.5 | 12.3 | 30 | 20 | 30 | 22.6 | 30 | 23.9 | 30 | 14.2 | 22 | 14.3 | 22 | 10.6 | 18.5 | 10.6 | 22 | |
BY2GW.W4.5-40 | 1.0 | 29.1 | 18.5 | 32.4 | 18.5 | 33.5 | 22 | 34 | 22 | 20.5 | 18.5 | 20.6 | 18.5 | 15.3 | 15 | 15.3 | 18.5 |
| 1.25 | 27.5 | 18.5 | 31.6 | 22 | 33 | 30 | 33.7 | 30 | 20.2 | 18.5 | 20.3 | 22 | 15 | 18.5 | 15.1 | 22 | |
| 1.6 | 25.3 | 30 | 30.6 | 30 | 32.3 | 30 | 33.2 | 30 | 19.9 | 22 | 20 | 22 | 14.7 | 18.5 | 14.8 | 22 | |
BY2GW.W4.5-52 | 0.6 | 41.8 | 15 | 43.9 | 15 | 44.6 | 18.5 | 45 | 22 | 27.3 | 15 | 27.4 | 18.5 | 20.3 | 15 | 20.3 | 15 |
| 1.0 | 38.9 | 22 | 42.4 | 22 | 43.6 | 30 | 44.2 | 30 | 26.6 | 18.5 | 26.7 | 18.5 | 19.7 | 15 | 19.7 | 18.5 | |
BY2GW.W4.5-72 | 0.4 | 57.3 | 15 | 58.8 | 15 | 59.3 | 18.5 | 59.6 | 22 | 36.1 | 15 | 36.2 | 15 | 26.9 | 15 | 26.9 | 18.5 |
| 0.6 | 55.5 | 18.5 | 57.7 | 22 | 58.5 | 22 | 58.9 | 22 | 35.5 | 22 | 35.6 | 18.5 | 26.3 | 18.5 | 26.3 | 22 | |
BY2GW.W5.0-28 | 2.5 | 17.3 | 37 | 24.7 | 37 | 27.2 | 37 | 28.4 | 45 | 17.1 | 30 | 17.3 | 37 | 12.9 | 30 | 12.9 | 37 |
| 3.2 | 23.1 | 45 | 26.3 | 45 | 27.9 | 55 | 16.7 | 37 | 17 | 45 | 12.7 | 37 | 12.8 | 37 | |||
| 4.0 | 21.3 | 55 | 25.3 | 55 | 27.3 | 75 | 16.2 | 45 | 16.5 | 45 | 12.4 | 37 | 12.6 | 45 | |||
BY2GW.W5.0-40 | 1.6 | 34.6 | 37 | 39.5 | 45 | 41.1 | 45 | 42 | 45 | 25.4 | 30 | 25.6 | 37 | 19.9 | 30 | 20 | 37 |
| 2.0 | 32.3 | 37 | 38.4 | 45 | 40.5 | 45 | 41.5 | 45 | 25.1 | 37 | 25.3 | 37 | 18.8 | 37 | 18.9 | 37 | |
BY2GW.W5.0-40 | 2.5 | 29.4 | 45 | 37.1 | 45 | 39.7 | 55 | 41 | 55 | 24.7 | 37 | 24.9 | 37 | 18.5 | 37 | 18.6 | 37 |
BY2GW.W5.0-52 | 1.0 | 50.7 | 30 | 53.9 | 30 | 55 | 37 | 55.5 | 37 | 33.8 | 30 | 34 | 30 | 25.3 | 30 | 25.4 | 30 |
| 1.25 | 49.1 | 30 | 53.1 | 37 | 54.4 | 37 | 55.1 | 45 | 33.5 | 30 | 33.7 | 37 | 25 | 30 | 25.1 | 37 | |
| 1.6 | 46.9 | 37 | 52 | 45 | 53.7 | 45 | 54.6 | 55 | 33.1 | 37 | 33.3 | 37 | 24.7 | 30 | 24.7 | 37 | |
BY2GW.W5.0-64 | 0.6 | 66.1 | 22 | 68.1 | 22 | 68.8 | 30 | 39.1 | 37 | 42.3 | 22 | 42.4 | 30 | 31.6 | 22 | 31.7 | 30 |
| 1.0 | 63.2 | 30 | 66.6 | 37 | 67.7 | 37 | 68.2 | 45 | 41.5 | 30 | 41.7 | 30 | 30.9 | 30 | 31 | 30 | |
BY2GW.W5.0-96 | 0.4 | 96.7 | 22 | 98.1 | 22 | 98.6 | 30 | 98.8 | 37 | 60.3 | 22 | 60.4 | 30 | 45.1 | 22 | 45.1 | 30 |
| 0.6 | 89.7 | 30 | 96.9 | 37 | 97.7 | 37 | 98 | 45 | 59.6 | 30 | 59.7 | 30 | 44.4 | 30 | 44.5 | 30 | |
BY2GW.W5.0-30 | 2.5 | 26.7 | 45 | 34.1 | 45 | 36.6 | 55 | 37.8 | 75 | 22.7 | 45 | 23 | 45 | 17.1 | 45 | 17.3 | 45 |
| 3.2 | 23 | 55 | 32.5 | 55 | 35.7 | 75 | 37.2 | 75 | 22.2 | 45 | 22.5 | 55 | 16.8 | 45 | 17 | 55 | |
| 4.0 | 30.6 | 75 | 34.6 | 75 | 36.6 | 75 | 21.8 | 55 | 22.1 | 55 | 16.6 | 55 | 16.8 | 55 | |||
BY2GW.W5.5-44 | 1.6 | 43 | 45 | 51.7 | 45 | 54.6 | 55 | 56 | 55 | 33.8 | 37 | 34.1 | 45 | 25.5 | 37 | 25.6 | 45 |
| 2.0 | 39 | 55 | 49.9 | 55 | 53.6 | 55 | 55.4 | 75 | 33.2 | 45 | 33.6 | 55 | 25 | 45 | 25.2 | 55 | |
| 2.5 | 34.1 | 55 | 47.8 | 75 | 52.3 | 75 | 54.6 | 75 | 32.7 | 55 | 33.3 | 55 | 24.7 | 45 | 24.8 | 55 | |
BY2GW.W5.5-56 | 1.0 | 64.3 | 37 | 70 | 37 | 71.9 | 45 | 72.9 | 55 | 44.1 | 37 | 44.4 | 45 | 33 | 37 | 33.2 | 45 |
| 1.25 | 61.6 | 45 | 68.8 | 45 | 71.1 | 55 | 72.2 | 75 | 43.7 | 37 | 44 | 45 | 32.7 | 37 | 32.8 | 45 | |
| 1.6 | 57.9 | 55 | 67 | 55 | 70 | 75 | 71.5 | 75 | 43.1 | 45 | 43.4 | 45 | 32.3 | 37 | 32.4 | 45 | |
BY2GW.W5.5-80 | 0.6 | 99.7 | 30 | 103 | 37 | 104 | 45 | 105 | 45 | 64 | 30 | 64.2 | 37 | 48 | 30 | 48 | 37 |
| 1.0 | 94.6 | 45 | 100 | 55 | 102 | 55 | 103 | 75 | 62.8 | 45 | 63.1 | 45 | 46.9 | 37 | 47 | 45 | |
BY2GW.W 5.5-120 | 0.4 | 146 | 30 | 149 | 37 | 150 | 45 | 150 | 55 | 91.8 | 30 | 92 | 37 | 68.6 | 30 | 68.7 | 37 |
| 0.6 | 143 | 45 | 147 | 55 | 148 | 55 | 149 | 55 | 90.7 | 37 | 90.9 | 45 | 67.6 | 37 | 67.6 | 45 | |
| BY2GW.W6.1-36 | 2.5 | 40.9 | 75 | 51.9 | 75 | 55.7 | 75 | 57.4 | 90 | 33 | 55 | 33.4 | 75 | 24.9 | 55 | 25 | 75 |
| 3.2 | 35.4 | 75 | 49.5 | 90 | 54.2 | 90 | 56.6 | 110 | 32.4 | 75 | 32.9 | 75 | 24.5 | 75 | 24.7 | 75 | |
| 4.0 | 46.8 | 110 | 52.7 | 110 | 55.6 | 110 | 31.7 | 75 | 32.4 | 90 | 24 | 75 | 24.3 | 75 | |||
| BY2GW.W6.1-48 | 1.6 | 67.6 | 55 | 74.8 | 75 | 77.3 | 75 | 78.5 | 75 | 47.5 | 55 | 47.8 | 75 | 35.7 | 55 | 35.8 | 75 |
| 2.0 | 64.2 | 75 | 73.3 | 75 | 76.3 | 75 | 77.8 | 90 | 47 | 75 | 47.5 | 75 | 35.2 | 55 | 35.3 | 75 | |
| 2.5 | 60 | 75 | 71.4 | 90 | 75.2 | 90 | 77.1 | 110 | 46.4 | 75 | 46.9 | 75 | 34.9 | 55 | 34.9 | 75 | |
| BY2GW.W6.1-64 | 1.0 | 99 | 45 | 103 | 55 | 105 | 75 | 106 | 75 | 64.5 | 45 | 64.7 | 55 | 48.4 | 45 | 48.5 | 55 |
| 1.25 | 96.6 | 55 | 102 | 75 | 104 | 75 | 105 | 90 | 64.1 | 55 | 64.3 | 75 | 48 | 55 | 48 | 75 | |
| 1.6 | 93.3 | 75 | 101 | 75 | 103 | 90 | 104 | 90 | 63.2 | 75 | 63.7 | 75 | 47.2 | 55 | 47.5 | 75 | |
| BY2GW.W6.1-96 | 0.6 | 155 | 45 | 158 | 55 | 160 | 75 | 160 | 75 | 98 | 45 | 98 | 55 | 73.2 | 45 | 73.3 | 55 |
| 1.0 | 151 | 75 | 156 | 75 | 158 | 75 | 158 | 90 | 96.4 | 55 | 96.7 | 75 | 72 | 55 | 72.1 | 75 | |
| BY2GW.W6.1-144 | 0.4 | 225 | 45 | 228 | 55 | 228 | 55 | 229 | 75 | 140 | 45 | 140 | 55 | 104 | 45 | 105 | 55 |
| 0.6 | 222 | 75 | 225 | 75 | 227 | 75 | 227 | 90 | 138 | 55 | 138 | 75 | 103 | 55 | 103 | 75 | |
| BY2GW.W6.9-40 | 2.5 | 61.3 | 90 | 74 | 90 | 78.2 | 110 | 80.3 | 110 | 46.3 | 75 | 46.8 | 90 | 35 | 75 | 35.1 | 90 |
| 3.2 | 54.9 | 110 | 71.2 | 110 | 76.6 | 132 | 79.3 | 132 | 45.6 | 90 | 46.2 | 110 | 34.5 | 90 | 34.7 | 110 | |
| 4.0 | 68 | 160 | 74.8 | 160 | 78.2 | 185 | 44.8 | 110 | 45.6 | 132 | 33.9 | 110 | 34.2 | 132 | |||
| BY2GW.W6.9-56 | 1.6 | 102 | 110 | 110 | 110 | 113 | 132 | 114 | 132 | 69.8 | 75 | 70.2 | 90 | 52.5 | 75 | 52.6 | 90 |
| 2.0 | 98 | 132 | 108 | 132 | 112 | 160 | 144 | 160 | 69 | 90 | 69.6 | 110 | 51.9 | 90 | 52 | 110 | |
| 2.5 | 93 | 132 | 106 | 132 | 110 | 160 | 113 | 160 | 68.4 | 110 | 68.9 | 110 | 51.4 | 90 | 51.5 | 110 | |
| BY2GW.W6.9-80 | 1.0 | 157 | 110 | 163 | 110 | 165 | 132 | 166 | 132 | 101 | 75 | 101 | 90 | 75.9 | 75 | 76 | 90 |
| 1.25 | 154 | 132 | 161 | 132 | 164 | 160 | 165 | 160 | 100 | 90 | 100 | 110 | 75.3 | 90 | 75.4 | 110 | |
| 1.6 | 150 | 160 | 159 | 160 | 162 | 185 | 164 | 185 | 99.7 | 110 | 100 | 110 | 74.6 | 90 | 74.8 | 110 | |
| BY2GW.W6.9-112 | 0.6 | 228 | 90 | 232 | 90 | 233 | 110 | 234 | 110 | 143 | 75 | 143 | 90 | 107 | 75 | 107 | 90 |
| 1.0 | 222 | 132 | 228 | 132 | 231 | 160 | 232 | 160 | 142 | 90 | 142 | 110 | 106 | 90 | 106 | 110 | |
| BY2GW.W6.9-144 | 0.4 | 283 | 75 | 285 | 75 | 286 | 90 | 287 | 90 | 176 | 55 | 176 | 75 | 132 | 55 | 132 | 75 |
| 0.6 | 279 | 110 | 283 | 110 | 284 | 132 | 285 | 132 | 174 | 75 | 174 | 90 | 130 | 75 | 130 | 90 | |
| BY2GW.W7.6-96 | 0.6 | 261 | 110 | 265 | 110 | 267 | 132 | 267 | 132 | 165 | 75 | 165 | 90 | 124 | 75 | 124 | 90 |
| 1.0 | 254 | 160 | 262 | 160 | 264 | 185 | 266 | 185 | 163 | 110 | 163 | 110 | 123 | 90 | 123 | 110 | |
| BY2GW.W7.6-112 | 0.6 | 305 | 110 | 309 | 110 | 311 | 132 | 312 | 32 | 192 | 75 | 192 | 90 | 144 | 75 | 144 | 90 |
| 0.8 | 301 | 160 | 308 | 160 | 310 | 185 | 311 | 185 | 191 | 110 | 191 | 132 | 143 | 110 | 143 | 132 | |
| BY2GW.W7.6-160 | 0.4 | 420 | 110 | 423 | 110 | 424 | 132 | 424 | 132 | 261 | 75 | 261 | 90 | 197 | 75 | 197 | 90 |
| 0.6 | 415 | 160 | 420 | 160 | 422 | 185 | 423 | 185 | 259 | 90 | 259 | 110 | 195 | 90 | 195 | 110 | |
| BY2GW.W7.6-56 | 1.6 | 81.8 | 90 | 92.9 | 110 | 96.7 | 110 | 98.5 | 110 | 70.2 | 75 | 70.3 | 90 | 56.4 | 75 | 56.4 | 90 |
| 2.0 | 76.7 | 110 | 90.6 | 132 | 95.3 | 132 | 97.6 | 132 | 69.4 | 90 | 69.5 | 110 | 55.9 | 90 | 55.9 | 110 | |
| 2.5 | 70.3 | 110 | 87.8 | 132 | 93.6 | 132 | 96.5 | 132 | 68.6 | 110 | 69.3 | 110 | 55.3 | 90 | 55.3 | 110 | |
| BY2GW.W7.6-80 | 1.0 | 132 | 90 | 139 | 90 | 141 | 110 | 143 | 110 | 102 | 75 | 102 | 90 | 81.7 | 75 | 81.7 | 90 |
| 1.25 | 128 | 110 | 137 | 110 | 140 | 132 | 142 | 132 | 101 | 90 | 101 | 110 | 81.2 | 90 | 81.2 | 110 | |
| 1.6 | 123 | 132 | 135 | 132 | 139 | 160 | 141 | 160 | 100 | 110 | 100 | 110 | 80.4 | 90 | 80.4 | 110 | |
| BY2GW.W7.6-96 | 0.6 | 166 | 75 | 171 | 90 | 172 | 90 | 173 | 90 | 124 | 55 | 124 | 75 | 99 | 55 | 99 | 75 |
| 1.0 | 160 | 110 | 168 | 132 | 170 | 132 | 171 | 132 | 122 | 75 | 122 | 90 | 97 | 75 | 97 | 90 | |
| BY2GW.W7.6-112 | 0.6 | 195 | 90 | 200 | 90 | 201 | 90 | 202 | 90 | 144 | 75 | 144 | 75 | 115 | 75 | 115 | 75 |
| 0.8 | 191 | 110 | 198 | 110 | 200 | 110 | 201 | 110 | 143 | 75 | 143 | 75 | 114 | 75 | 114 | 75 | |
| BY2GW.W7.6-160 | 0.4 | 270 | 75 | 274 | 75 | 275 | 75 | 276 | 75 | 196 | 55 | 196 | 75 | 157 | 55 | 157 | 75 |
| 0.6 | 266 | 110 | 271 | 132 | 273 | 132 | 268 | 132 | 194 | 75 | 194 | 90 | 155 | 75 | 155 | 90 | |
| BY2GW.W8.3-64 | 1.6 | 112 | 132 | 126 | 132 | 131 | 132 | 133 | 132 | 95.2 | 110 | 95.4 | 110 | 76.5 | 90 | 76.5 | 90 |
| 2.0 | 106 | 132 | 123 | 160 | 129 | 160 | 132 | 160 | 94.3 | 110 | 95 | 132 | 75.8 | 110 | 75.8 | 110 | |
| 2.5 | 98.4 | 160 | 120 | 185 | 127 | 185 | 131 | 185 | 93.2 | 132 | 94.1 | 185 | 75 | 132 | 75 | 185 | |
| BY2GW.W8.3-96 | 1.0 | 189 | 132 | 198 | 132 | 202 | 132 | 203 | 132 | 145 | 110 | 145 | 110 | 134 | 110 | 134 | 110 |
| 1.25 | 185 | 132 | 196 | 160 | 200 | 160 | 202 | 160 | 144 | 110 | 144 | 110 | 115 | 110 | 115 | 110 | |
| 1.6 | 178 | 160 | 193 | 185 | 198 | 185 | 200 | 185 | 143 | 132 | 143 | 132 | 114 | 132 | 114 | 132 | |
| BY2GW.W8.3-120 | 0.6 | 248 | 110 | 253 | 110 | 255 | 110 | 256 | 110 | 183 | 75 | 183 | 75 | 146 | 75 | 146 | 75 |
| 1.0 | 239 | 160 | 249 | 160 | 252 | 160 | 254 | 160 | 181 | 110 | 181 | 110 | 144 | 110 | 144 | 110 | |
| BY2GW.W8.3-144 | 0.6 | 298 | 110 | 304 | 132 | 306 | 132 | 307 | 132 | 202 | 90 | 202 | 90 | 175 | 90 | 175 | 90 |
| 0.8 | 293 | 160 | 302 | 160 | 304 | 160 | 306 | 160 | 218 | 110 | 218 | 110 | 174 | 110 | 174 | 110 | |
| BY2GW.W8.3-192 | 0.4 | 385 | 110 | 389 | 110 | 390 | 110 | 391 | 110 | 279 | 75 | 279 | 75 | 222 | 75 | 222 | 75 |
| 0.6 | 378 | 132 | 385 | 132 | 387 | 132 | 388 | 132 | 276 | 110 | 276 | 110 | 220 | 110 | 220 | 110 | |
